How to remove and refit a Cooling Fan Assembly on Mercedes-Benz 190E?

To remove the thermo-viscous coupled fan, start by disconnecting the battery negative cable and moving it away from the terminal. Remove the screws and detach the plastic panels from above and below the radiator, releasing the coolant hose from the clip on the upper panel if applicable. For models with a one-piece fan shroud, prise off the metal spring clips and detach the shroud from the radiator, allowing it to rest between the engine and the fan blades. For split fan shroud models, remove the locking pin and rotate the shroud ring to disengage it, then pass it over the fan. Detach the fan shroud and shroud ring from the engine bay. On petrol engine models, align the cooling fan pulley locking hole with the recess in the fan bearing bracket and insert the special tool to lock it in place. For diesel engine models, use a special Mercedes tool to counter-hold the fan pulley shaft. Slacken and withdraw the bolts to detach the fan blade assembly from the viscous clutch unit, then remove the clutch assembly from the pulley shaft. Refitting is the reverse of removal, ensuring all bolts are tightened to the specified torque. For the electromagnetically coupled fan, disconnect the battery negative cable and drain the cooling system on 4-cylinder petrol models. Remove the radiator and air cleaner, then take off the auxiliary drivebelt from the cooling pump pulley. Undo the centre retaining bolt to remove the fan from the pump spindle, followed by the coolant pump pulley. For early models with multiple auxiliary drivebelts, undo the bolts securing the coupling body to the coolant pump and withdraw the coupling, unplugging the wiring. For later models with a single ribbed auxiliary drivebelt, undo the bolts at the rear of the coupling body and remove the unit from the engine. Refitting is the reverse of removal, ensuring the arrangement of washers on the fan retaining bolt is correct and tightening all fixings to the specified torque.

How to check and replace the Cooling Fan Assembly and its components on Mercedes-Benz C230?

Disconnect the cable from the negative terminal of the battery and rock the fan back and forth by hand to check for excessive bearing play. With the engine cold and not running, turn the fan blades by hand; the fan should turn freely. To replace the fan, disconnect the cable from the negative terminal of the battery, remove the air cleaner housing and air inlet duct(s), and on 4WD models, disconnect the power steering line bracket from the top rear of the radiator crossmember. Follow the fan wiring harness to the connector and unplug it, then remove the horn and detach the power steering oil cooler from the front of the radiator crossmember. Free the coolant line from the clip at the top rear of the radiator crossmember, and if the hood latch cable will block removal of the crossmember, disconnect it at the connector on the left side of the engine compartment. Detach the air guide clips and wiring harness ties from the crossmember at the upper front of the engine compartment, unbolt the bracket that secures the crossmember to the grille, and remove the retaining pin and mounting bolts from each end of the crossmember. Squeeze the radiator retaining clips to disengage them, then lift the crossmember off the vehicle, removing the clips that secure the air guide beneath it. Follow the fan wiring harness to the connector and unplug it, then free the clips that secure the fan shroud to the radiator and lift the shroud off, together with the fan motor, tilting the radiator forward for clearance as you lift the fan out. Carefully inspect the fan blades for any damage and replace if necessary, also checking the fan motor and electronic controller for signs of damage or roughness when rotating the assembly. At this point, the fan may be unbolted from the motor if necessary, and the motor and controller unbolted from the fan shroud. Installation is the reverse of removal, ensuring to tighten the fan and motor mounting bolts evenly and securely.

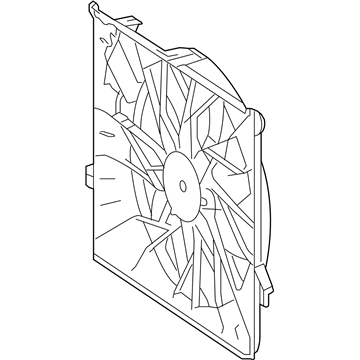

Genuine Mercedes-Benz Cooling Fan Assembly

Engine Cooling Fan

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

86 Cooling Fan Assemblys found

View related parts
Mercedes-Benz Fan Blade
Part Number: 113-200-01-23
$55.20 MSRP: $77.00
You Save: $21.80 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan; Fan Blade
- Replaced by: 113-200-01-23-64
- Replaces: 113-200-01-23-64
Fits the following Mercedes-Benz Models:
- CLK430 | 1999-2003 | Base | 8 Cyl 4.3 L GAS
- CLK55 AMG | 2001-2002 | Base | 8 Cyl 5.5 L GAS
View related parts
Mercedes-Benz Fan Blade
Part Number: 606-200-01-23
$55.80 MSRP: $78.00
You Save: $22.20 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan; Fan Blade
Fits the following Mercedes-Benz Models:
- E300 | 1998-1999 | Base | 6 Cyl 3.0 L DIESEL
View related parts
Mercedes-Benz Fan Blade
Part Number: 112-200-01-23
$63.60 MSRP: $89.00
You Save: $25.40 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan; Blade
- Replaced by: 112-200-01-23-64
- Replaces: 112-200-01-23-64
Fits the following Mercedes-Benz Models:
- C280 | 1998-2000 | Base | 6 Cyl 2.8 L GAS
- E320 | 1998-2003 | 4Matic, Base | 6 Cyl 3.2 L GAS
- G500 | 2002-2008 | Base | 8 Cyl 5.0 L GAS
- G55 AMG | 2003-2005 | Base | 8 Cyl 5.5 L GAS
- ML320 | 1998-2003 | Base | 6 Cyl 3.2 L GAS
- ML350 | 2003-2005 | Base | 6 Cyl 3.7 L GAS
View More
View related parts
Mercedes-Benz Fan Blade
Part Number: 103-200-04-23
$85.20 MSRP: $119.00
You Save: $33.80 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan; Blade, Fan Blade
Fits the following Mercedes-Benz Models:
- 260E | 1987-1989 | Base | 6 Cyl 2.6 L GAS
- 300CE | 1988-1993 | Base | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- 300E | 1986-1993 | 2.6, 2.8, 4Matic, Base | 6 Cyl 2.6 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- 300SE | 1988-1991 | Base | 6 Cyl 3.0 L GAS
- 300SEL | 1988-1991 | Base | 6 Cyl 3.0 L GAS
- 300TE | 1988-1993 | 4Matic, Base | 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS
- C280 | 1994-1997 | Base | 6 Cyl 2.8 L GAS
- E320 | 1994-1995 | Base | 6 Cyl 3.2 L GAS
View More
View related parts
Mercedes-Benz Fan Blade
Part Number: 119-200-00-23
$69.60 MSRP: $97.00
You Save: $27.40 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan; Fan Blade
Fits the following Mercedes-Benz Models:
- E420 | 1997 | Base | 8 Cyl 4.2 L GAS
View related parts
Mercedes-Benz Fan Blade
Part Number: 113-200-02-23-64
$86.40 MSRP: $120.00
You Save: $33.60 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan; Blade, Fan Blade
- Replaces: 113-200-02-23
Fits the following Mercedes-Benz Models:
- E430 | 1998-2002 | 4Matic, Base | 8 Cyl 4.3 L GAS
- E55 AMG | 1999-2002 | Base | 8 Cyl 5.5 L GAS
- ML430 | 1999-2001 | Base | 8 Cyl 4.3 L GAS
- ML500 | 2002 | Base | 8 Cyl 5.0 L GAS
- SL500 | 1999-2002 | Base | 8 Cyl 5.0 L GAS
View More
View related parts
Mercedes-Benz Fan Shroud
Part Number: 221-505-01-55
$147.60 MSRP: $206.00
You Save: $58.40 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan Cowl; Fan Assembly
Fits the following Mercedes-Benz Models:
- CL550 | 2007-2009 | 4Matic, Base | 8 Cyl 5.5 L GAS
- S550 | 2007-2011 | 4Matic, Base | 8 Cyl 5.5 L GAS
View related parts
Mercedes-Benz Fan & Motor
Part Number: 001-500-12-93
$202.80 MSRP: $282.00
You Save: $79.20 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Blower; Fan & Motor
Fits the following Mercedes-Benz Models:
- C220 | 1994-1996 | Base | 4 Cyl 2.2 L GAS
- C230 | 1999-2000 | Kompressor | 4 Cyl 2.3 L GAS
- C280 | 1994-1998 | Base | 6 Cyl 2.8 L GAS
- CLK430 | 1999-2003 | Base | 8 Cyl 4.3 L GAS
- CLK55 AMG | 2001-2002 | Base | 8 Cyl 5.5 L GAS
View More
View related parts
Mercedes-Benz Fan Blade
Part Number: 116-205-24-06
$212.40 MSRP: $296.00
You Save: $83.60 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan; Blade
Fits the following Mercedes-Benz Models:
- 300D | 1990-1993, 1987 | 2.5, Base | 5 Cyl 2.5 L DIESEL, 6 Cyl 3.0 L DIESEL
- 300SD | 1992-1993 | Base | 6 Cyl 3.4 L DIESEL
- 300SDL | 1986-1987 | Base | 6 Cyl 3.0 L DIESEL
- 300TD | 1987 | Base | 6 Cyl 3.0 L DIESEL
- 350SD | 1991 | Base | 6 Cyl 3.4 L DIESEL
- 350SDL | 1990-1991 | Base | 6 Cyl 3.4 L DIESEL
- S350 | 1994-1995 | Base | 6 Cyl 3.4 L DIESEL
View More
View related parts
Mercedes-Benz Fan Blade
Part Number: 000-200-73-23
$207.60 MSRP: $290.00
You Save: $82.40 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan; Fan Blade
Fits the following Mercedes-Benz Models:
- Sprinter 2500 | 2010-2013 | Base | 6 Cyl 3.0 L DIESEL
- Sprinter 3500 | 2010-2013 | Base | 6 Cyl 3.0 L DIESEL
View related parts
Mercedes-Benz Fan Assembly
Part Number: 099-906-61-00
$1152.00 MSRP: $1600.00
You Save: $448.00 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Blower
Fits the following Mercedes-Benz Models:
- S600 | 2015-2017 | Base | 12 Cyl 6.0 L GAS
- SL65 AMG | 2017-2018 | Base | 12 Cyl 6.0 L GAS
View related parts
Mercedes-Benz Fan Blade
Part Number: 116-205-19-06
$339.60 MSRP: $472.00
You Save: $132.40 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan; Blade, Fan Blade
Fits the following Mercedes-Benz Models:
- 380SE | 1984-1985 | Base | 8 Cyl 3.8 L GAS
- 380SL | 1984-1985 | Base | 8 Cyl 3.8 L GAS
- 420SEL | 1986-1991 | Base | 8 Cyl 4.2 L GAS
- 500SEC | 1984-1985 | Base | 8 Cyl 5.0 L GAS
- 500SEL | 1984-1985 | Base | 8 Cyl 5.0 L GAS
- 560SEC | 1986-1991 | Base | 8 Cyl 5.6 L GAS
- 560SEL | 1986-1991 | Base | 8 Cyl 5.6 L GAS
- 560SL | 1986-1989 | Base | 8 Cyl 5.6 L GAS
View More
View related parts
Mercedes-Benz Fan Assembly
Part Number: 001-500-35-93
$546.00 MSRP: $760.00
You Save: $214.00 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan Assembly
Fits the following Mercedes-Benz Models:
- E320 | 2000-2003 | 4Matic, Base | 6 Cyl 3.2 L GAS
View related parts
Mercedes-Benz Fan & Motor
Part Number: 001-540-01-88
$464.40 MSRP: $645.00
You Save: $180.60 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Blower; Fan & Motor, Fan Assembly, Fan Blade
- Replaces: 000-540-16-88
Fits the following Mercedes-Benz Models:
- CLK320 | 1998-2003 | Base | 6 Cyl 3.2 L GAS
- SLK32 AMG | 2002-2004 | Base | 6 Cyl 3.2 L GAS
- SLK320 | 2001-2004 | Base | 6 Cyl 3.2 L GAS
View More
View related parts
Mercedes-Benz Fan Blade
Part Number: 103-200-03-23
Product Specifications
- Other Name: Fan
Fits the following Mercedes-Benz Models:
- 190E | 1987-1993 | 2.6 | 6 Cyl 2.6 L GAS
View related parts
Mercedes-Benz Fan Blade
Part Number: 103-200-06-23
Product Specifications
- Other Name: Fan; Fan Blade
Fits the following Mercedes-Benz Models:
- 300SE | 1992-1993 | Base | 6 Cyl 3.2 L GAS
- 300SL | 1990-1993 | Base | 6 Cyl 3.0 L GAS
- E320 | 1996-1997 | Base | 6 Cyl 3.2 L GAS
- S320 | 1994-1999 | LWB, SWB | 6 Cyl 3.2 L GAS
- SL320 | 1994-1997 | Base | 6 Cyl 3.2 L GAS
View More
View related parts
Mercedes-Benz Fan Blade
Part Number: 111-200-00-23
Product Specifications
- Other Name: Fan
- Replaces: 603-200-05-23
Fits the following Mercedes-Benz Models:
- C220 | 1994-1996 | Base | 4 Cyl 2.2 L GAS
- C230 | 1997-2000 | Base, Kompressor | 4 Cyl 2.3 L GAS
View related parts
Mercedes-Benz Fan Blade
Part Number: 102-200-21-23
Product Specifications
- Other Name: Fan
- Replaces: 102-200-12-23
Fits the following Mercedes-Benz Models:
- 190E | 1991-1993, 1984-1988 | 2.3, 2.3-16 | 4 Cyl 2.3 L GAS
View related parts
Mercedes-Benz Fan & Motor
Part Number: 001-500-13-93
Product Specifications
- Other Name: Blower; Fan & Motor, Fan Blade
Fits the following Mercedes-Benz Models:
- C220 | 1994-1996 | Base | 4 Cyl 2.2 L GAS
- C230 | 1999-2000 | Kompressor | 4 Cyl 2.3 L GAS
- C280 | 1994-1998 | Base | 6 Cyl 2.8 L GAS
- CLK430 | 1999-2003 | Base | 8 Cyl 4.3 L GAS
- CLK55 AMG | 2001-2002 | Base | 8 Cyl 5.5 L GAS
View More
View related parts
Mercedes-Benz Fan & Motor
Part Number: 000-540-15-88
Product Specifications
- Other Name: Electric Motor; Fan, Fan & Motor
Fits the following Mercedes-Benz Models:
- C230 | 1997-1998 | Base | 4 Cyl 2.3 L GAS
- E320 | 1998-2003 | 4Matic, Base | 6 Cyl 3.2 L GAS
- SLK230 | 1998-2004 | Kompressor | 4 Cyl 2.3 L GAS
View More

| Page 1 of 5 |Next >

1-20 of 86 Results

Mercedes-Benz Cooling Fan Assembly

Mercedes-Benz Cooling Fan Assembly rapidly draws cool air through the radiator to maintain engine temperature for confident drivers in stop and go traffic as well as on hot days. Mercedes-Benz stands for a combination of luxury, cutting edge tech and durability that began in 1926 with the merger created by Karl Benz and the brand continues to push forward with smart features such as MBUX voice control, energy recovery systems for hybrid vehicles and the new MB.OS platform that combines driver assist, battery management, infotainment and artificial intelligence in one seamless experience. Sleek styling goes hand in hand with these digital advances, meaning owners enjoy cars that are elegant in appearance, yet futuristic in feel. This reputation for innovation helps to support strong durability and a lasting pride of ownership. Sitting just behind the grille, the unit is a combination of a multi-bladed fan, a close fitting shroud and an electric or clutch drive that spins only when sensors call for extra airflow, saving power and reducing noise. Its concentrated breeze helps the coolant to drop heat quickly, protecting aluminum heads and keeping the oil at the proper thickness for smooth acceleration. Because the Cooling Fan Assembly doesn't react to engine revs alone, it provides precise thermal control throughout the entire lineup, ensuring that every journey is reliable and efficient.

Genuine parts are built to last. These components go through tough factory testing, so you can trust they will hold up over time. At MBPartsGiant.com, finding Mercedes-Benz Cooling Fan Assembly is quick and simple. We keep a massive inventory in stock with low prices that are hard to beat. Just order online to get a real manufacturer's warranty with every single part. Returns won't be a headache either, thanks to our no-hassle policy. If you are in a rush, we provide expedited shipping to get your vehicle back on the road. Don't wait. Finish your repairs today and keep your Mercedes-Benz running like new. Explore the catalog now.

Mercedes-Benz Cooling Fan Assembly Parts and Q&A

Fan Blade
102-200-21-23
Q: How to remove and refit a Cooling Fan Assembly on Mercedes-Benz 190E?
A:
To remove the thermo-viscous coupled fan, start by disconnecting the battery negative cable and moving it away from the terminal. Remove the screws and detach the plastic panels from above and below the radiator, releasing the coolant hose from the clip on the upper panel if applicable. For models with a one-piece fan shroud, prise off the metal spring clips and detach the shroud from the radiator, allowing it to rest between the engine and the fan blades. For split fan shroud models, remove the locking pin and rotate the shroud ring to disengage it, then pass it over the fan. Detach the fan shroud and shroud ring from the engine bay. On petrol engine models, align the cooling fan pulley locking hole with the recess in the fan bearing bracket and insert the special tool to lock it in place. For diesel engine models, use a special Mercedes tool to counter-hold the fan pulley shaft. Slacken and withdraw the bolts to detach the fan blade assembly from the viscous clutch unit, then remove the clutch assembly from the pulley shaft. Refitting is the reverse of removal, ensuring all bolts are tightened to the specified torque. For the electromagnetically coupled fan, disconnect the battery negative cable and drain the cooling system on 4-cylinder petrol models. Remove the radiator and air cleaner, then take off the auxiliary drivebelt from the cooling pump pulley. Undo the centre retaining bolt to remove the fan from the pump spindle, followed by the coolant pump pulley. For early models with multiple auxiliary drivebelts, undo the bolts securing the coupling body to the coolant pump and withdraw the coupling, unplugging the wiring. For later models with a single ribbed auxiliary drivebelt, undo the bolts at the rear of the coupling body and remove the unit from the engine. Refitting is the reverse of removal, ensuring the arrangement of washers on the fan retaining bolt is correct and tightening all fixings to the specified torque.
Fan & Motor
203-500-02-93-28
Q: How to check and replace the Cooling Fan Assembly and its components on Mercedes-Benz C230?
A:
Disconnect the cable from the negative terminal of the battery and rock the fan back and forth by hand to check for excessive bearing play. With the engine cold and not running, turn the fan blades by hand; the fan should turn freely. To replace the fan, disconnect the cable from the negative terminal of the battery, remove the air cleaner housing and air inlet duct(s), and on 4WD models, disconnect the power steering line bracket from the top rear of the radiator crossmember. Follow the fan wiring harness to the connector and unplug it, then remove the horn and detach the power steering oil cooler from the front of the radiator crossmember. Free the coolant line from the clip at the top rear of the radiator crossmember, and if the hood latch cable will block removal of the crossmember, disconnect it at the connector on the left side of the engine compartment. Detach the air guide clips and wiring harness ties from the crossmember at the upper front of the engine compartment, unbolt the bracket that secures the crossmember to the grille, and remove the retaining pin and mounting bolts from each end of the crossmember. Squeeze the radiator retaining clips to disengage them, then lift the crossmember off the vehicle, removing the clips that secure the air guide beneath it. Follow the fan wiring harness to the connector and unplug it, then free the clips that secure the fan shroud to the radiator and lift the shroud off, together with the fan motor, tilting the radiator forward for clearance as you lift the fan out. Carefully inspect the fan blades for any damage and replace if necessary, also checking the fan motor and electronic controller for signs of damage or roughness when rotating the assembly. At this point, the fan may be unbolted from the motor if necessary, and the motor and controller unbolted from the fan shroud. Installation is the reverse of removal, ensuring to tighten the fan and motor mounting bolts evenly and securely.
